Pro Dunk Diamond Pier Kit works on all 12x8 Pro Dunk Diamond basketball systems. Uses high grade steel j-bolts that are galvanized and designed to be mounted in concrete. This is a 6 j-bolt pier system that is mounted into the concrete. The main pole then mounts to these bolts to hold the system to the concrete. This does not include the rebar needed for the concrete pier.

Version Notes: The Pro Dunk Diamond pier kit is designed for the current design with a 12x8 inch main pole. With this installation you will have 3 bolts on the right and 3 bolts on the left. If you have 3 bolts in front and 3 bolts in the back you can still use this pier kit. You will need to flip it around to fit your needs. The original 8x8 inch Pro Dunk Diamond used this mounting method.

This includes:

• [1] Pro Dunk Diamond Template Plate
• [6] J-bolt 50cm x 13cm x 18mm
• [18] 18mm hex nut
• [12] 18mm flat washer
• [6] 18mm lock washer

This backboard is designed for the Pro Dunk Diamond basketball system and measures 72 Inch wide by 42 Inch height with 1/2 Inch regulation tempered glass. This backboard is a regulation sized backboard and plays just like the gym. Please note this does not come with any hardware and it does not include the H-bracket mounted to the back of the backboard.

This includes:

• [1] 72x42x1/2 Inch glass with white shooters square and boarder
• [1] Full aluminum frame with L brackets pre-installed

This part replaces the white plastic or black cord that attaches the net to the rim. Note that this is cord is NOT coupled but does included a metal crimp several inches from the end that functions as a stop. Watch a video on how to replace the net tie.

Version Notes: Older rims that have curly "rim horns" do not need this part. Secondly, this replacement part may not look exactly like your original.

Heavy-duty nylon white net designed for outdoor use. This does not include the net tie. If your rim uses a net tie to hold the net on we recommend checking it to make sure you do not also need a replacement net tie. Video: Watch a video on how to replace the net

This includes:

• [1] White Nylon Net

12x8 Inch gusset padding is used on the Pro Dunk Diamond main pole and covers the base of the main pole for safety. This does not include the pole padding that covers the majority of the main pole.

Version Notes: The 12x8 Black Gusset Padding is designed for the Pro Dunk Diamond that has a 12x8 main pole. Older Pro Dunk Diamond systems might use 8x8 Gusset Padding. This can be found under the Hercules Diamond parts list. Navigate to www.produnkhoops.com/parts and select Hercules Diamond.

This includes:

• [1] 12x8 Inch Fitted Black Gusset Pad

12x8 Inch pole padding is used on the Pro Dunk Diamond main pole and covers the bottom 2/3 of the main pole for safety.

Version Notes: The 12x8 Black Pole Padding is designed for the Pro Dunk Diamond that has a 12x8 main pole. Older Pro Dunk Diamond systems might use 8x8 Pole Padding. This can be found under the Hercules Diamond parts list. Navigate to www.produnkhoops.com/parts and select Hercules Diamond. Please note you will need to cut out the hole for the adjustment mechanisum when purchasing Hercules Padding.

This includes:

• [1] 12x8 Inch Fitted Black Pole Pad

72 Inch backboard padding can be mounted on any of our 72 Inch by 42 Inch backboards. This padding is a foam coated with a latex coating to resist the elements. It covers the edge of the bottom third of the backboard.

This includes:

• [1] 72 Inch Left Side Backboard Padding
• [1] 72 Inch Right Side Backboard Padding
• [1] Stainless Steel Hardware kit package for mounting the backboard padding

The large actuator is used on the Pro Dunk Diamond and Pro Dunk Platinum to raise and lower the basketball system. The actuator is located behind the spring assists and has a crank at the bottom which turned to adjust the height of the rim. Installation Directions: Actuator Installation Directions

This includes:

• [1] Large Actuator D/L

The large Lightning Adjust actuator can be used on the THOR Diamond or THOR Platinum basketball system allowing for drill powered height adjustment.

Any name brand 18 to 24 volt battery powered drill can be used with Lightning Adjust. If you don't have a drill one is available here in the parts section.

Swap your standard hand crank actuator with Lightning Adjust in 10 minutes.

• Full details
• Installation video
• Installation instructions

This includes:

• [1] Lightning Adjust [Large]
• [1] Lightning Adjust Socket
• [1] Preassembled Drill Holster
• [1] Manual Hand Crank
• DOES NOT INCLUDE DRILL

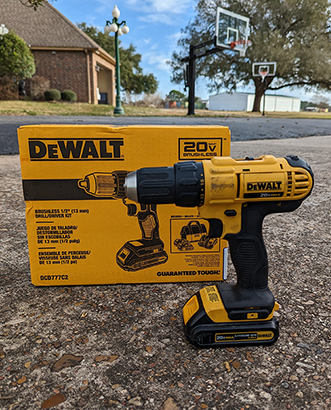

Name brand drill perfect for powering Lightning Adjust. This 18v to 24v drill includes a battery and charger.

This includes:

• [1] Name brand drill * brand may differ from photo
• [1] Battery
• [1] Battery charger

Two of the Pro Dunk Diamond spring assists are installed behind the main pole and in front of the actuator. These make the system much easier to raise and lower. 2 spring assists are needed to complete a Pro Dunk Diamond.

This includes:

• [1] Pro Dunk Diamond Spring Assist

The height meter and sticker are used to measure the height of the system at any given time.

This includes:

• [1] Pro Dunk Diamond Height Sticker
• [1] Steel Height Meter

The Pro Dunk Diamond height sticker is applied to the spring assist and is used to tell the height of the system when using the steel height meter with it.

This includes:

• [1] Pro Dunk Diamond Height Sticker Only

Hoops Breakaway rim features a dual spring system designed to break downwards when a player dunks on it. Video: Replace Your Net

This includes:

• [1] Hoops Breakaway Rim Plate Cover
• [3] Self-Tapping screws for the rim plate cover
• [1] Hoops Breakaway Rim
• [1] Net
• [4] Rim bolt with washer, lock washer, and hex nut
• Does NOT include rim spacers

Includes 4 stainless steel rim bolts, washers, and hex nuts to install the rim to the backboard. Please note, that this does not include the 4 rim spacers that go between the rim and backboard. They are sold separately.

This includes:

• [4] 7cm x 10mm hex bolt with a 17mm socket head
• [4] 10mm hex nut with 17mm socket head
• [8] 10mm flat washer
• [4] 10mm lock washer

Includes four rim spacers and are used to mount the rim off the backboard so that it does not touch the glass. These are required to be installed before the rim. The rim spacer is a steel insert that is coated in soft plastic.

This includes:

• [4] Rim Spacer

Stainless steel self-tapping screw designed to mount the rim plate cover to the underside of the rim. This plate covers the springs and internal workings of the rim. Two are needed to mount the rim plate cover to the rim. Each measures 3cm long and 6mm in diameter with a 10 mm socket head.

This includes:

• [1] 3cm x 6mm self-tapping screw with a 10 mm socket head

Contains the 8 main bolts (stainless steel) used to assemble the main structure of the Pro Dunk Diamond basketball system.

Version Notes: The Pro Dunk Diamond bolt kit is designed for the 12x8 inch main pole system. If you have the older 8x8 inch main pole Pro Dunk Diamond then you will need to submit a support request for the parts you are in need of. This can be done at www.produnkhoops.com/support.

Please measure and verify you have the same size bolts before ordering. All measurements can be found below. If you have different size bolts please submit a support request at www.produnkhoops.com/support.

This includes:

• [1] 14cmx16mm bolt and lock nut
• [1] 19cmx16mm bolt and lock nut
• [2] 36cmx18mm bolt and lock nut
• [2] 42cmx18mm bolt and lock nut
• [2] 42cmx20mm bolt and lock nut

Two ears are used on the Pro Dunk Diamond system to attach 2 spring assist and 1 actuator to the main pole. 6 hex bolts are used to attach the ears to the back of the main pole. This does not include the hardware.

Version Notes: Only the newer 12x8 Pro Dunk Diamond uses the main pole ears. If you have an older 8x8 inch Pro Dunk Diamond then these will have been welded on.

This includes:

• [1] Pro Dunk Diamond Left Ear
• [1] Pro Dunk Diamond Right Ear

The six stainless steel bolts, nuts, and washers used to mount the Pro Dunk Diamond Ears to the main pole. 6 of these are used on each system.

Version Notes: Only the newer 12x8 Pro Dunk Diamond uses the main pole ears. If you have an older 8x8 inch Pro Dunk Diamond then these will have been welded on.

This includes:

• [1] Pro Dunk Diamond Ear Hex Bolt
• [2] Pro Dunk Diamond Ear Flat Washer
• [1] Pro Dunk Diamond Ear Lock Nut

The Pro Dunk Diamond H-bracket (with rust armor) is designed to connect the backboard to the main extension arm and the two upper linkage arms. This is a black structure that mounts to the top and bottom of the backboard aluminum frame using 8 bolts and nuts.

This includes:

• [1] Pro Dunk Diamond H-Bracket (without hardware)

The includes 8 stainless steel bolts, nuts and washers and are used to mount the H-bracket to the aluminum frame on the backboard. 4 are used on the top and 4 are used on the bottom securing it in the center of the backboard.

Version Notes: Please measure and verify you have the same size bolts before ordering. All measurements can be found below. If you have different size bolts please submit a support request at www.produnk.com/support.

This includes:

• [8] 3 1/2cm x 8mm hex bolt with a 13mm socket head
• [8] 8mm small washer
• [8] 8mm large washer
• [8] 8mm lock washer
• [8] 8mm hex nut with a 13mm socket head

The Pro Dunk Diamond main pole is a 12x8 Inch steel pole with 7 gauge thick steel walls.

Version Notes: Please measure and verify you have the same size pole before ordering. If you have an 8x8 inch main pole please submit a support request at www.produnkhoops.com/support with the requested part.

This includes:

• [1] 12x8 Inch Pro Dunk Diamond Main Pole with Rust Armor

Pro Dunk Diamond Main extension arm connects the main pole to the H-bracket mounted on the back of the backboard.

Version Notes: Please verify that you have a 12x8 inch main pole before ordering. If you have the older 8x8 main pole please submit a support request at www.produnkhoops.com/support with the requested part.

This includes:

• [1] Pro Dunk Diamond Main Extension Arm With Rust Armor

Two of the Pro Dunk Diamond upper linkage arms are used to connect the main pole to the H-bracket on the back of the backboard. These are located just above the main extension arm. Two of these are needed for each system.

Version Notes: Please verify that you have a 12x8 inch main pole before ordering. If you have the older 8x8 main pole please submit a support request at www.produnkhoops.com/support with the requested part.

This includes:

• [1] Pro Dunk Diamond Upper Linkage Arm

This safety pin is designed for a 12x8 main pole used on the Pro Dunk Diamond. The safety pin will restrict the height of the basketball system for safety reasons.

Version Notes: Please verify that you have a 12x8 inch main pole before ordering. If you have the older 8x8 main pole please submit a support request at www.produnkhoops.com/support with the requested part.

This includes:

• [1] Safety Pin Bar
• [1] Safety Pin Locking Pin
