HERCULES Diamond Parts

Hercules Diamond Pier Kit works on all Hercules Diamond basketball systems. Uses high grade steel j-bolts that are galvanized and designed to be mounted in concrete. This is a 6 j-bolt pier system that is mounted into the concrete. The main pole then mounts to these bolts to hold the system to the concrete. This does not include the rebar needed for the concrete pier.

This includes:

• [1] Hercules Diamond Template Plate
• [6] J-bolt 50cm x 13cm x 18mm
• [18] 18mm hex nut
• [12] 18mm flat washer
• [6] 18mm lock washer

This backboard is designed for the Hercules Diamond basketball system and measures 72 Inch wide by 42 Inch height with 1/2 Inch regulation tempered glass. This backboard is a regulation sized backboard and plays just like the gym. Please note this does not come with any hardware and it does not include the H-bracket mounted to the back of the backboard.

This includes:

• [1] 72x42x1/2 Inch glass with white shooters square and boarder
• [1] Full aluminum frame with L brackets pre-installed

This part replaces the white plastic or black cord that attaches the net to the rim. Note that this is cord is NOT coupled but does included a metal crimp several inches from the end that functions as a stop. Watch a video on how to replace the net tie.

Version Notes: Older rims that have curly "rim horns" do not need this part. Secondly, this replacement part may not look exactly like your original.

Heavy-duty nylon white net designed for outdoor use. This does not include the net tie. If your rim uses a net tie to hold the net on we recommend checking it to make sure you do not also need a replacement net tie. Video: Watch a video on how to replace the net

This includes:

• [1] White Nylon Net

8x8 Inch gusset padding is used on the Hercules Diamond main pole and covers the base of the main pole for safety. This does not include the pole padding that covers the majority of the main pole.

This includes:

• [1] 8x8 Inch Fitted Black Gusset Pad

8x8 Inch pole padding is used on the Hercules Diamond main pole and covers the bottom 2/3 of the main pole for safety.

Version Notes: If you are purchasing the 8x8 pole padding for the old Pro Dunk Diamond with an 8x8 pole you will need to cut the hole in the back of the pole padding for the adjustment mechanism.

This includes:

• [1] 8x8 Inch Fitted Black Pole Pad

72 Inch backboard padding can be mounted on any of our 72 Inch by 42 Inch backboards. This padding is a foam coated with a latex coating to resist the elements. It covers the edge of the bottom third of the backboard.

This includes:

• [1] 72 Inch Left Side Backboard Padding
• [1] 72 Inch Right Side Backboard Padding
• [1] Stainless Steel Hardware kit package for mounting the backboard padding

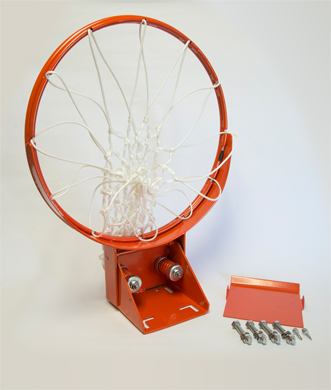

Hoops Breakaway rim features a dual spring system designed to break downwards when a player dunks on it. Video: Replace Your Net

This includes:

• [1] Hoops Breakaway Rim Plate Cover
• [3] Self-Tapping screws for the rim plate cover
• [1] Hoops Breakaway Rim
• [1] Net
• [4] Rim bolt with washer, lock washer, and hex nut
• Does NOT include rim spacers

This includes 4 stainless steel rim bolts to mount the rim to the backboard. Specifically designed for the Hercules Diamond, Hercules Platinum, and Hercules Gold.

Version Notes: Please measure and verify you have the same size bolts before ordering. All measurements can be found below. If you have different size bolts please submit a support request at www.produnk.com/support.

This includes:

• [4] 8cm x 10mm hex bolt with a 17mm socket head
• [4] 10mm hex nut with 17mm socket head
• [8] 10mm flat washer
• [4] 10mm lock washer

Includes four rim spacers and are used to mount the rim off the backboard so that it does not touch the glass. These are required to be installed before the rim. The rim spacer is a steel insert that is coated in soft plastic.

This includes:

• [4] Rim Spacer

Stainless steel self-tapping screw designed to mount the rim plate cover to the underside of the rim. This plate covers the springs and internal workings of the rim. Two are needed to mount the rim plate cover to the rim. Each measures 3cm long and 6mm in diameter with a 10 mm socket head.

This includes:

• [1] 3cm x 6mm self-tapping screw with a 10 mm socket head

8 27cmx18mm bolts are used to mount the Hercules Diamond main extension arm to the main pole. Please note this only comes with 1 of the main bolts. If you need a complete set please purchase 8 of these.

Version Notes: If your system has 6 bolts total that mount the main extension arm to the main pole this hardware kit will not work for you. Please submit a support request for the parts you are in need of. This can be done at www.produnkhoops.com/support.

Please measure and verify you have the same size bolts before ordering. All measurements can be found below. If you have different size bolts please submit a support request at www.produnkhoops.com/support.

This includes:

• [1] 27cmx18mm bolt, washers, lock washer and hex nut

This bolt kit is for the Hercules Diamond extension arms. This kit comes with 6 bolts used to mount the small extension arm to the main extension arm and 6 bolts used to mount the small and large extension arm to the H-bracket on the back of the backboard. This does not include the 8 main bolts used to mount the main extension arm to the main pole and does not include the 4 bolts used to mount the rim to the backboard.

Please measure and verify you have the same size bolts before ordering. All measurements can be found below. If you have different size bolts please submit a support request at www.produnkhoops.com/support.

This includes:

• [6] 3cmx10mm bolt, washer and lock washer
• [6] 4cmx10mm bolt, washer, lock washer and hex nut

The Hercules Diamond H-bracket (with rust armor) is designed to connect the backboard to the main extension arm and the small extension arm. This is a black structure that mounts to the top and bottom of the backboard aluminum frame using 8 bolts and nuts.

This includes:

• [1] Hercules Diamond H-Bracket (without hardware)

The includes 8 stainless steel bolts, nuts and washers and are used to mount the H-bracket to the aluminum frame on the backboard. 4 are used on the top and 4 are used on the bottom securing it in the center of the backboard.

Version Notes: Please measure and verify you have the same size bolts before ordering. All measurements can be found below. If you have different size bolts please submit a support request at www.produnk.com/support.

This includes:

• [8] 3 1/2cm x 8mm hex bolt with a 13mm socket head
• [8] 8mm small washer
• [8] 8mm large washer
• [8] 8mm lock washer
• [8] 8mm hex nut with a 13mm socket head

The Hercules Diamond main pole is an 8x8 Inch steel pole with 7 gauge thick steel walls.

This includes:

• [1] 8x8 Inch Hercules Diamond Main Pole with Rust Armor

Hercules Diamond Main extension arm connects the main pole to the H-bracket mounted on the back of the backboard. The small extension arm also connect to the main extension arm which then connects to the H-bracket as well.

Version Notes: If there are 6 bolts holding your main extension arm to the main pole this extension arm will not work. You must have 8 main bolts holding the main extension arm to the main pole.

This includes:

• [1] Hercules Diamond Main Extension Arm With Rust Armor

Hercules Diamond small extension arm connects to the main extension arm and the H-bracket on the back of the backboard.

This includes:

• [1] Hercules Diamond Small Extension Arm With Rust Armor

Hercules Diamond Main extension arm plate is letter F in the installation instructions. This plate is used to bolt the main extension arm to the main pole by sandwiching the main pole between the extension arm plate and the main extension arm.

Version Notes: If there are 6 bolts holding your main extension arm to the main pole this extension arm plate will not work. You must have 8 main bolts holding the main extension arm to the main pole.

This includes:

• [1] Hercules Diamond Main Extension Arm Plate With Rust Armor
